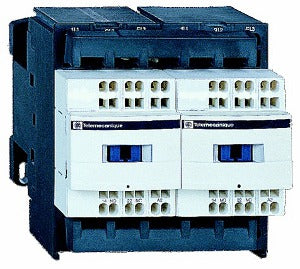

SCHNEIDER ELECTRIC LC2D18G7 CONTACTOR, 18A, 3P, 10HP, 480V - NEW OLD STOCK
SCHNEIDER ELECTRIC LC2D18G7 CONTACTOR, 18A, 3P, 10HP, 480V - NEW OLD STOCK
Regular price
$369.99 USD
Regular price
$1,100.04 USD
Sale price
$369.99 USD
Unit price
/
per
Shipping calculated at checkout.
The product is out of stock
Couldn't load pickup availability
SCHNEIDER ELECTRIC LC2D18G7 CONTACTOR, 18A, 3P, 10HP, 480V - NEW OLD STOCK
TeSys REVERSING CONTACTOR
TeSys D ContactorNumber of Poles: 3-PolesPole Contact Composition: 3 NORated Operational Current: 18AControl Circuit Voltage: 120V AC 50/60 HzReversing
Product Specifications
| [Icw] rated short-time withstand current | 100 A - 1 s for signalling circuit |
| 120 A - 500 ms for signalling circuit | |
| 140 A - 100 ms for signalling circuit | |
| 145 A 104 °F (40 °C) - 10 s for power circuit | |
| 240 A 104 °F (40 °C) - 1 s for power circuit | |
| 40 A 104 °F (40 °C) - 10 min for power circuit | |
| 84 A 104 °F (40 °C) - 1 min for power circuit | |
| [Ie] rated operational current | 18 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit |
| 32 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit | |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) for signalling circuit |
| 32 A (at 140 °F (60 °C)) for power circuit | |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| [Ue] rated operational voltage | Power circuit <= 300 V DC |
| Power circuit <= 690 V AC 25...400 Hz | |
| [Ui] rated insulation voltage | Power circuit 600 V CSA |
| Power circuit 600 V UL | |
| Power circuit 690 V IEC 60947-4-1 | |
| Signalling circuit 600 V CSA | |
| Signalling circuit 600 V UL | |
| Signalling circuit 690 V IEC 60947-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947 |
| Ambient Air Temperature For Operation | 140…158 °F (60…70 °C) with derating |
| -40…140 °F (-40…60 °C) | |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| 35 A gG at <= 690 V coordination type 2 for power circuit | |
| 50 A gG at <= 690 V coordination type 1 for power circuit | |
| auxiliary contact composition | 1 NO + 1 NC |
| auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1 |
| Mirror contact 1 NC IEC 60947-4-1 | |
| average impedance | 2.5 mOhm - Ith 32 A 50 Hz for power circuit |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Carbon footprint (kg CO2 eq, Total Life cycle) | 42 |
| climatic withstand | IACS E10 |
| IEC 60947-1 Annex Q category D | |
| coil technology | Without built-in suppressor module |
| Connections - Terminals | Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end |
| Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end | |
| Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)solid | |
| Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end | |
| Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end | |
| Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)solid | |
| Power circuit screw clamp terminals 1 0.002…0.009 in² (1.5…6 mm²)flexible without cable end | |
| Power circuit screw clamp terminals 1 0.002…0.009 in² (1.5…6 mm²)solid | |
| Power circuit screw clamp terminals 1 0.002…0.009 in² (1…6 mm²)flexible with cable end | |
| Power circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible with cable end | |
| Power circuit screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²)flexible without cable end | |
| Power circuit screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²)solid | |
| contact compatibility | M2 |
| contactor application | Motor control |
| Resistive load | |
| control circuit type | AC 50/60 Hz |
| control circuit voltage limits | 0.3...0.6 Uc (-40…158 °F (-40…70 °C)):drop-out AC 50/60 Hz |
| 0.8...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 50 Hz | |
| 0.85...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 60 Hz | |
| 1...1.1 Uc (140…158 °F (60…70 °C)):operational AC 50/60 Hz | |
| Depth | 3.4 in (86 mm) |
| Device Presentation | Preassembled with reversing power busbar |
| Device Short Name | LC2D |
| Electrical Durability | 1 Mcycles 32 A AC-1 <= 440 V |
| 1.65 Mcycles 18 A AC-3 <= 440 V | |
| Final Result for Flywheel performance tracking | Non Flywheel |
| fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Global Keywords | 3-pole reversing contactor |
| AC coil | |
| AC-3 | |
| Built-in auxiliary contact | |
| LC2D | |
| Mechanical interlock | |
| Motor control | |
| Motor switching | |
| Pre-wired connections | |
| Reversing contactor | |
| Reversing power contactor | |
| Screw clamp terminals | |
| TeSys D | |
| Heat Dissipation | 2…3 W 50/60 Hz |
| Height | 3.03 in (77 mm) |
| Hold-In Power Consumption In Va | 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) | |
| inrush power in VA | 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) | |
| insulation resistance | > 10 MOhm for signalling circuit |
| interlocking type | Mechanical |
| IP Degree of Protection | IP20 front face IEC 60529 |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 |
| 250 A DC for signalling circuit conforming to IEC 60947-5-1 | |
| 300 A at 440 V for power circuit conforming to IEC 60947 | |
| Manufacturer | Schneider Electric |
| Maximum Horse Power Rating | 1 hp at 115 V AC 60 Hz for 1 phase motors |
| 10 hp at 460/480 V AC 60 Hz for 3 phase motors | |
| 15 hp at 575/600 V AC 60 Hz for 3 phase motors | |
| 3 hp at 230/240 V AC 60 Hz for 1 phase motors | |
| 5 hp at 200/208 V AC 60 Hz for 3 phase motors | |
| 5 hp at 230/240 V AC 60 Hz for 3 phase motors | |
| maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Mechanical Durability | 15 Mcycles |
| Mechanical Robustness | Shocks contactor closed15 Gn for 11 ms |
| Shocks contactor open10 Gn for 11 ms | |
| Vibrations contactor closed4 Gn, 5...300 Hz | |
| Vibrations contactor open2 Gn, 5...300 Hz | |
| minimum switching current | 5 mA for signalling circuit |
| minimum switching voltage | 17 V for signalling circuit |
| motor power kW | 10 kW at 500 V AC 50 Hz |
| 10 kW at 660...690 V AC 50 Hz | |
| 4 kW at 220...230 V AC 50 Hz | |
| 7.5 kW at 380...400 V AC 50 Hz | |
| 9 kW at 415...440 V AC 50 Hz | |
| Mounting Support | Plate |
| Rail | |
| Net Weight | 1.559 lb(US) (0.707 kg) |
| non-overlap time | 1.5 ms on de-energisation between NC and NO contact |
| 1.5 ms on energisation between NC and NO contact | |
| Number of Units in Package 2 | 6 |
| Number of Units in Package 3 | 96 |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Operating Time | 12...22 ms closing |
| 4...19 ms opening | |
| Overvoltage Category | III |
| Package 2 GTIN | 43389110386415 |
| Package 2 Height | 5.91 in (15.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 11.744 lb(US) (5.327 kg) |
| Package 2 width | 11.81 in (30.0 cm) |
| Package 3 Height | 30.31 in (77.0 cm) |
| Package 3 Length | 23.62 in (60.0 cm) |
| Package 3 Weight | 206.644 lb(US) (93.732 kg) |
| Package 3 width | 31.50 in (80.0 cm) |
| Packaging made with recycled cardboard | Yes |
| Packaging without single use plastic | Yes |
| pole contact composition | 3 NO |
| Pollution Degree | 3 |
| power dissipation per pole | 0.8 W AC-3 |
| 2.5 W AC-1 | |
| Product Certifications | BV |
| CCC | |
| CSA | |
| DNV | |
| GL | |
| GOST | |
| LROS (Lloyds register of shipping) | |
| RINA | |
| UKCA | |
| UL | |
| Product Name | TeSys Deca |
| TeSys Deca | |
| Product Or Component Type | Reversing contactor |
| protective cover | With |
| Protective Treatment | TH IEC 60068-2-30 |
| PVC free | Yes |
| Range | TeSys |
| TeSys Deca | |
| rated breaking capacity | 300 A at 440 V for power circuit conforming to IEC 60947 |
| REACh free of SVHC | Yes |
| safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 |
| B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 | |
| signalling circuit frequency | 25...400 Hz |
| Standards | CSA C22.2 No 14 |
| EN 60947-4-1 | |
| EN 60947-5-1 | |
| IEC 60335-1 | |
| IEC 60947-4-1 | |
| IEC 60947-5-1 | |
| UL 508 | |
| Take-back | No |
| Temperature Shipping and Storage Range | -76…176 °F (-60…80 °C) |
| Tightening Torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm |
| Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 | |
| Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 | |
| Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm | |
| Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 | |
| Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2 | |
| Toxic heavy metal free | Yes |
| Type Of Network | 3P |
| Unit Type of Package 2 | S02 |
| Unit Type of Package 3 | P06 |
| UNSPSC Classification v19 | 39121529 |
| UNSPSC Classification v23 | 39121529 |
| utilisation category | AC-1 |
| AC-3 | |
| Volume of Package 2 | 18000.0 cm3 |
| Volume of Package 3 | 369600.0 cm3 |
| Width | 3.5 in (90 mm) |
CONDITION: UNIT IS NEW OLD STOCK. NEVER INSTALLED. UNIT HAS NO WARRANTY FROM DASHBUYS.COM AND SOLD AS-IS. BOX MAY HAVE MINOR STORAGE WEAR. MAIN PHOTO IS STOCK PHOTO ONLY. PLEASE ASK ANY QUESTIONS BEFORE PURCHASING.
SHIPPING: FREE UPS / USPS ON ALL ORDERS OVER $200
