SCHNEIDER ELECTRIC SXWSBTHCXSXX SENSOR BASE TEMP, CO2 , RH - NOS
SCHNEIDER ELECTRIC SXWSBTHCXSXX SENSOR BASE TEMP, CO2 , RH - NOS
Regular price
$399.99 USD
Regular price
$1,295.43 USD
Sale price
$399.99 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 5 in stock.
Couldn't load pickup availability
SCHNEIDER ELECTRIC SXWSBTHCXSXX SENSOR BASE TEMP, CO2 , RH - NEW OLD STOCK

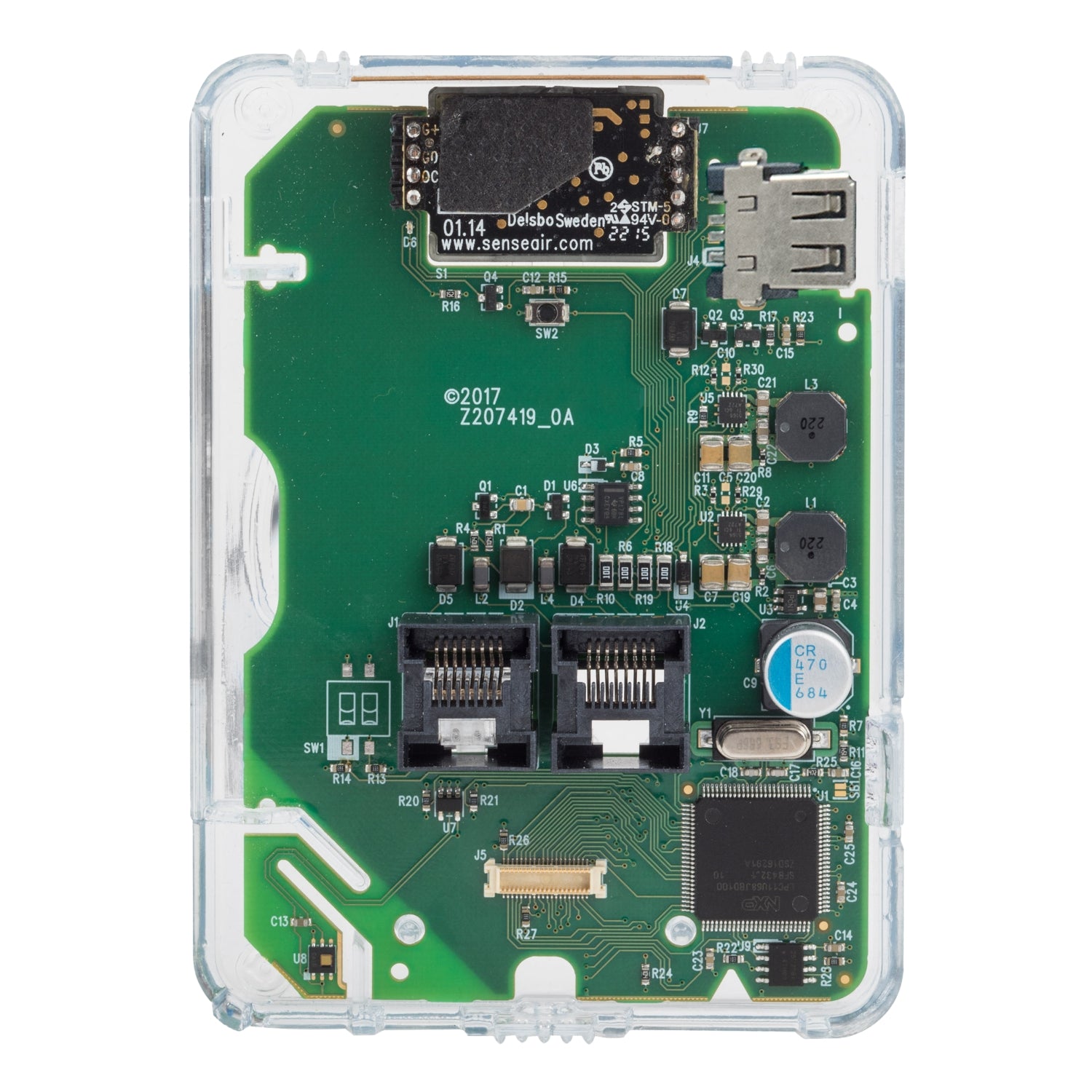

Sensor Base for SmartX IP Controllers,Temp, CO2, RH - Cover not included
SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller. Without housing. This base include a temperature and humidity elements.
| Product or Component Type | Sensor |
|---|---|
| Type of Measurement | Carbon Dioxide (CO2) Temperature, Humidity |
| Location | Living Space |
| Sensor Type | Transmitter |
| CO2 Measurement Range | 0...50 °C temperature 0...2000 ppm |
| Color | White |
| Communication Port Protocol | RJ45 |
| Depth | 0.8 in (20.7 mm) |
| Height | 4.4 in (111.6 mm) |
| Width | 3.2 in (81.2 mm) |
| Display Type | Without Display |
| IP Degree of Protection | IP20 |
| Local Signalling | 1 LED calibration (CAL) |
| Relative Humidity | 0…95 % |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Output Type | Sensor bus |
| Flame Retardance | UL94-V0 |
| Power consumption in W | 2 W |
| Product Certifications | CE EAC RCM ICES-003 |
| Standards | UL 916 FCC Part 15 class B |
| [Us] Rated Supply Voltage | 24 V DC |
| Product name | SmartX Living Space Sensor |
| Range | SpaceLogic |
| Device presentation | Without cover |
|---|---|
| Function Available | With temperature sensor With CO2 sensor With Humidity |
| Supply | Via bus connector |
| Material | ABS (acrylonitrile butadiene-styrene) GF10 FR |
| Range compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers EcoStruxure Building Operation SmartX Living Space Sensor sensor coverplate |
| Category | US1BMS180230 |
|---|---|
| Discount Schedule | BMS1 |
| GTIN | 3606489507251 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.59 in (14.2 cm) |
| Package 1 Width | 3.78 in (9.6 cm) |
| Package 1 Length | 1.97 in (5 cm) |
| Package 1 Weight | 4.9 oz (140 g) |
CONDITION: UNIT IS NEW OLD STOCK. NEVER INSTALLED. UNIT HAS NO WARRANTY FROM DASHBUYS.COM AND SOLD AS-IS. BOX MAY HAVE MINOR STORAGE WEAR. MAIN PHOTO IS STOCK PHOTO ONLY. PLEASE ASK ANY QUESTIONS BEFORE PURCHASING.
